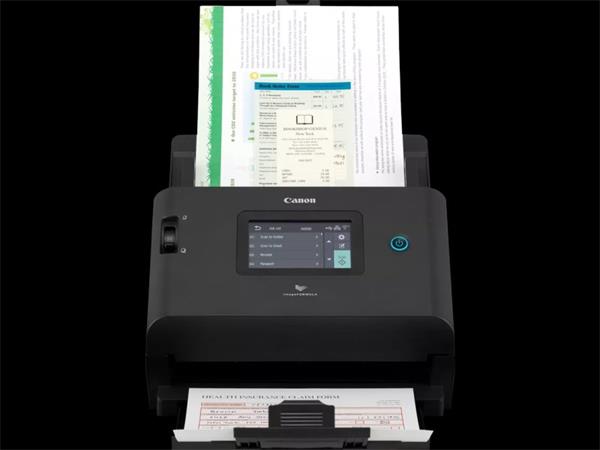

Canon imageFORMULA DR-S350NW

Specifications
50ppm/100ipm scanning speed
60 sheets ADF capacity
4.3” colour LCD touch panel
Driverless scanning
CaptureOnTouch Lite Web software
Support for NFC readers
Direct scanning network function
Flexible connectivity with USB, LAN and WiFi
EPEAT Gold rated*
*US certification
Specifications in detail
Product Specifications
Type
Desktop type double-sided capturing sheet fed scanner
Scanning Sensor Unit
CIS
Optical Resolution
600dpi
Light Source
RGB LED
Scanning Side
Front / Back / Duplex
Interface
USB: USB3.2 Gen1, ?

Ethernet:10Base-T/100Base-TX/1000Base-T?

Wi-Fi: 802.11 b, g, n (2.4GHz) / 802.11 a, ac (5GHz)1

USB host:USB2.0 Type A (Only for NFC reader)?
Dimensions (WxDxH)
Tray closed: 291*267*242 mm
Weight
Approx. 3.4kg
Power Requirements
220 - 240V (50/60Hz)
Power Consumption
Scanning : 28W or less
In sleep mode : 2.0W
Power off : 0.3W or less
Operating Environment
10°C to 32.5°C Humidity: 20% to 80% RH
Environmental Compliance
Product: EPEAT Gold2, Energy STAR3, RoHS
Manufacturer: ISO 9001, ISO 14001, ISO 45001, ISO 13485, ESG
Certification (SGS)
Scanning Specifications
Black and White
50 ppm / 100 ipm
Colour
50ppm / 100ipm
Output Resolution
100/150/200/3240/300/400/600dpi
Output Mode
Colour, Grayscale, Black & White
Suggested Daily Volume
from 6,000 to 9,000 scans/day
Document Specifications
Width
50.8 - 216 mm
Length
54 - 356 mm
Thickness
27 g/m2 - 255g/m2 (0.04 - 0.3mm)
Pressure-Sensitive Paper
Feeding only from binding side.
Hole Punched Paper
Up to 8mm, 2/3/4 holes paper only.
Long Document Mode
Up to 5,588mm
Business Card Scanning
W:50-55mm L:85-91mm Thickness:128~255g/?(0.15-0.3mm),Horizontal feeding only
Plastic Card Scanning
W:86mm L:54mm Thickness:1.4mm or less?

Embossed card available. Loading number:3 cards(non-embossed)
1 card(embossed/non separation)
Passport Scanning
Thickness: 4.0mm or less - 300 dpi or less.
Need optional carrier sheet for passport and passport mode setting.
Paper Separation
Retard Roller Method
Feeder Capacity
A4: 60 sheets
Larger than A4: 40 sheets
Special Features
Special Features
Web scan (without driver)
Web browser scanning with any device on same network by embedded CaptureOnTouch Lite Web (Supports QR code connection, OCR recognition, Ultrasonic Double Feed Detection, Passport mode, Skip Blank Page, Auto Page Size Detection, Password protection)

Direct scan (without driver)
Direct job scanning from panel for standalone operation. (Scanto Share folder, FTP/FTPS/SFTP/, Mail, Printer. Supports OCR recognition, Image Preview, Ultrasonic Double Feed Detection, Passport mode, Skip Blank Page, Auto Page Size Detection)

Settings (with driver)
Ultrasonic Double Feed Detection, Auto Colour Detection, Skip Blank Page, Auto Page Size Detection, Auto Resolution Setting, Text Orientation, Recognition, Barcode/2D Code Recognition, OCR Recognition, Batch separation, Active Threshold, Text Enhancement (I/II), Deskew, Double Feed Release, Prescan, 3-Dimensional, Colour Correction, Prevent Bleed-Through/ Remove Background, Background Smoothing, Character Emphasis, Colour Dropout/Enhance (RGB), , MultiStream Function, Adjustable Gamma Settings, Moire Reduction, Folio Mode, Reduction ratio adjustment, B&W Contrast, Reverse Image, Rapid Recovery System.
Bundled Software
Windows
ISIS, TWAIN and WIA Driver / CaptureOnTouch Pro / Canon imageFORMULA Driver Setting Tool / IEEE 802.1X Setting Tool, / DR-Management Tool (by download only)/ CoT Admin Tool (by download only)
Supported Operating Systems
CaptureOnTouch Lite Web (device embedded web app) supports use with web browser from various operating systems. Mopria® certified for use with Android and Chrome OS.
Other Options
Consumables
Exchange Roller Kit
Accessories
Flatbed Scanner Unit 102
Flatbed Scanner Unit 202
A4 Carrier Sheet
Passport Carrier Sheet
All data is based on Canon standard testing methods except where indicated.

Subject to change without notice.
Geographic restrictions may apply dependant by region. Please check with your local Canon office on device availability
EPEAT GOLD is a US Certification
ENERGY STAR is not applicable in Europe
